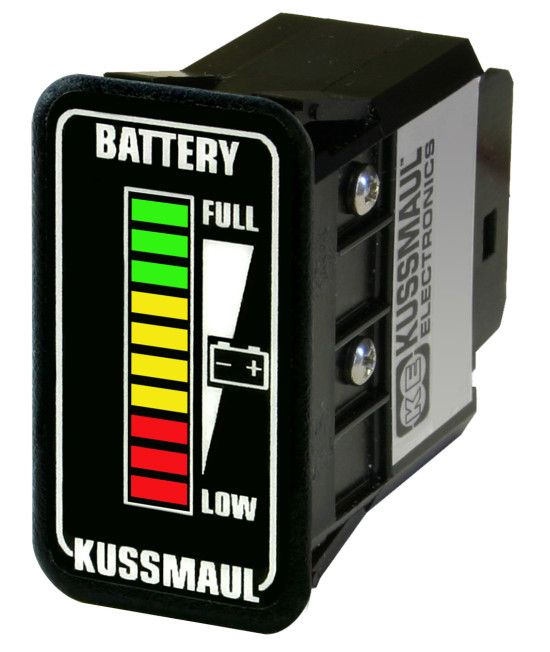

Kussmaul Mini Single Bar Graph Display

Kussmaul Mini Single Bar Graph Display

Kussmaul Mini Single Bar Graph Display

Description

• 10 LED Bar Graph battery status display
• Detects HIGH and LOW voltage on the vehicle battery by flashing the top or bottom LEDs, respectively
• Works with all new generation single output Kussmaul Battery Chargers
• Designed for easy installation in vehicle switch panels
• 3 year warranty

Specifications

• Warranty 3 years
• Temperature Range -40F to 120F
• Input Current 30mA,
• Max Cutout Size 1.45” x 0.83
• Bar Graph Range 12-13 +/- 2% (bottom to top)
• Low Voltage < 12.0 VDC (bottom LED flashes)
• High Voltage > 14.8 VDC (top LED flashes)
