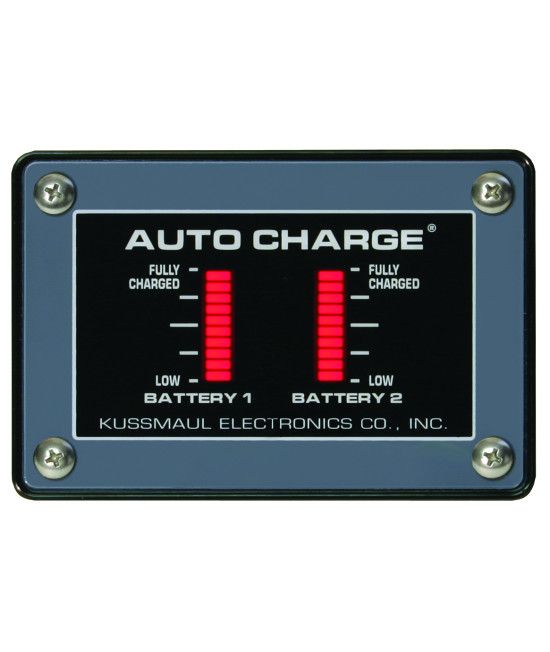

Kussmaul Dual Bar Graph Display

Kussmaul Dual Bar Graph Display

Kussmaul Dual Bar Graph Display Description

This universal dual battery bank voltage display may be installed in any 12/24V system (negative ground only)

Dual Bar Graph Voltage Display Wires Directly To Battery INDICATOR INSTALLATION

• 1. Locate Indicator in a convenient place on the vehicle.
• 2. Place the template in position and center punch in 4 places.
• 3. Drill holes as shown.
• 4. Cut out square hole.
• 5. Connect wiring to batteries in accordance with the wiring diagram
• 6. Install as shown.
• 7. Insert (4) #8-32 screws supplied and tighten.
• (CAUTION: Do not over tighten because you will bend the plastic bezel and break the watertight seal).

Specification

• Bargraph Type Dual
• DC Volts
