• The Guardian Jr Stop/Tail, Turn, and Backup lights are an expansion of the Guardian series of fixtures.

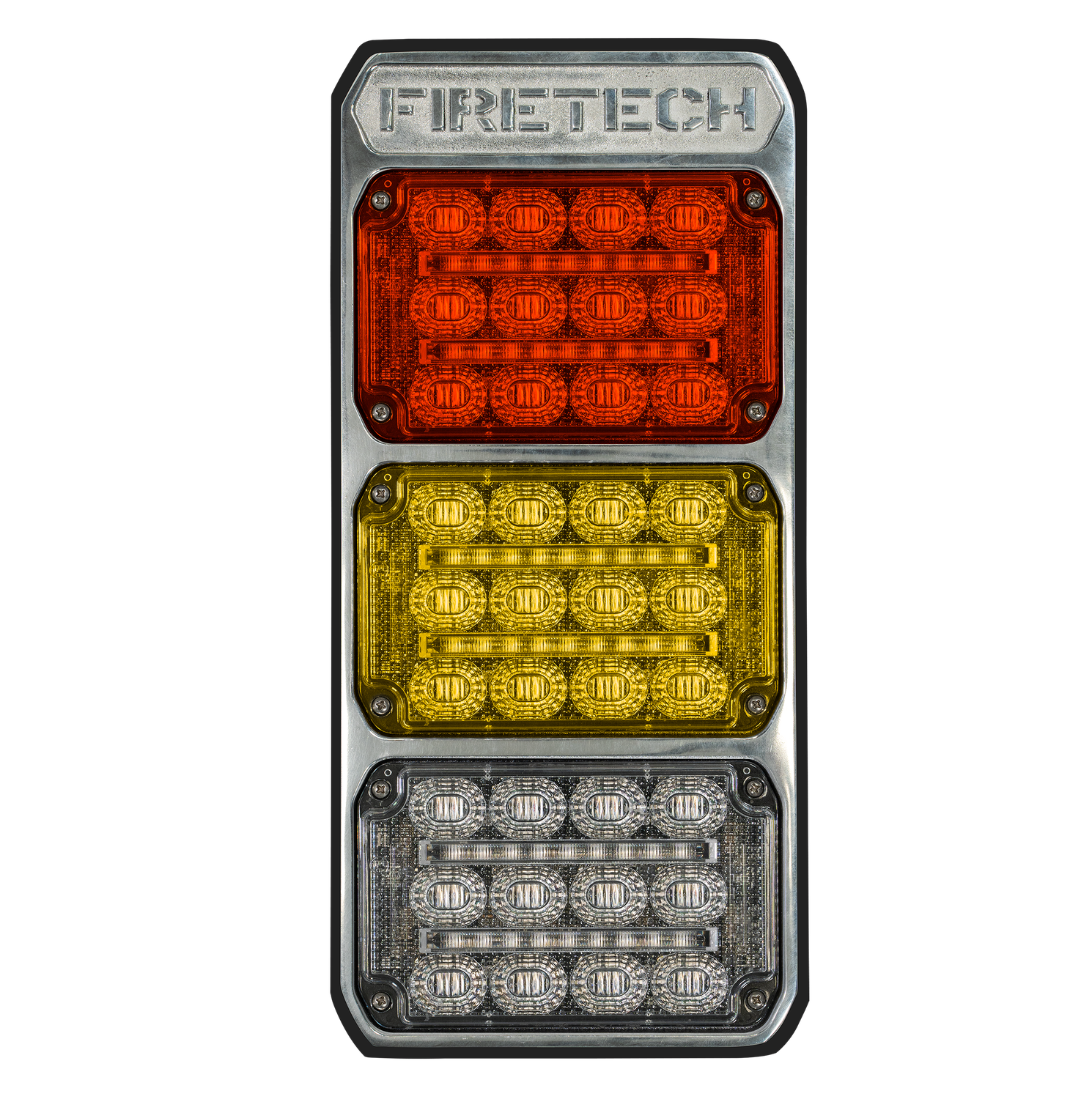

• They can be purchased individually (Stop/Tail, Turn, or Backup), or can be purchased in kits with triple and quad tail light housings.
• These fixtures are an economical addition to your apparatus which allows you to choose all fixtures from one lighting manufacturer for your whole apparatus, all backed by the industry’s first Lifetime Advance Exchange replacement warranty.

TECHNICAL INFORMATION

Stop/Tail Light

• Dimensions: 6.52” x 0.85” x 4.09”
• Avg. Wattage: 2.88W
• Max.Wattage: 5.76W
• Avg.Amperage: 0.24A @ 12V DC; 0.12A @ 24V DC
• Max. Amperage: 0.48A @ 12V DC; 0.24A @ 24V DC
• Input Voltage DC: 10-32V DC
• Certifications: FMVSS-108; SAE J2040; SAE J585; IP67 & IP69K

Backup Light

• Dimensions: 6.52” x 0.85” x 4.09”
• Max. Wattage: 2.88W
• Max. Amperage: 0.24A @ 12V DC; 0.12A @ 24V DC
• Input Voltage DC: 10-32V DC
• Certifications: FMVSS-108; SAE J593; IP67 & IP69K

Turn Light

• Dimensions: 6.52” x 0.85” x 4.09”
• Avg. Wattage: 3.36W
• Max. Wattage: 6.72W
• Avg. Amperage: 0.28A @ 12V DC; 0.14A @ 24V DC
• Max. Amperage: 0.56A @ 12V DC; 0.28A @ 24V DC
• Input Voltage DC: 10-32V DC
• Certifications: FMVSS-108; SAE J2261; SAE J588; IP67 & IP69K
