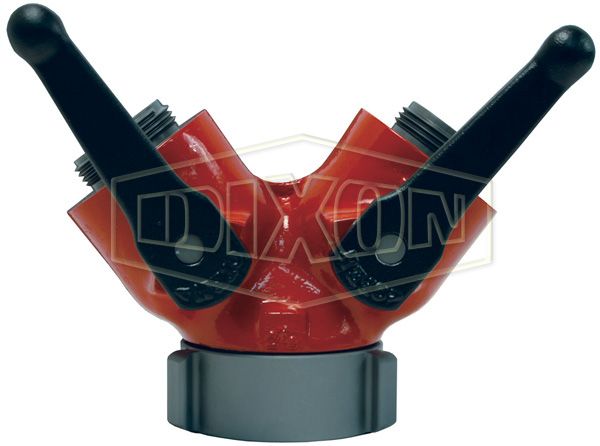

Dixon Valve Forestry Grade Aluminum 1/4 Turn Ball Type Wye Valve

Dixon Valve Forestry Grade Aluminum 1/4 Turn Ball Type Wye Valve

Dixon Valve Forestry Grade Aluminum 1/4 Turn Ball Type Wye Valve

• Specifications Built to United States Forest Service specifications
• Construction Cast aluminum swivel inlet Anodized body
• Hard-coated threads

Part Number FWV10S10S

• Material Cast Aluminum
• Inlet 1" female NPSH Outlet (2) 1" male NPSH
• Maximum Operating Pressure 600 PSI (water/AFFF only) at 70°F (21°C)
• Weight Lb 1.7900

Part Number FWV15F15F

• Material Cast Aluminum
• Inlet 1-1/2" female NST (NH) Outlet (2) 1-1/2" male NST (NH)
• Maximum Operating Pressure 600 PSI (water/AFFF only) at 70°F (21°C)
• Weight Lb 3.6600

Part Number FWV15S15S

• Material Cast Aluminum
• Inlet 1-1/2" female NPSH Outlet (2) 1-1/2" male NPSH
• Maximum Operating Pressure 600 PSI (water/AFFF only) at 70°F (21°C)
• Weight Lb 3.3500

Part Number FWV25F15F

• Material Cast Aluminum
• Inlet 2-1/2" female NST (NH) Outlet (2) 1-1/2" male NST (NH)
• Maximum Operating Pressure 400 PSI (water/AFFF only) at 70°F (21°C)
• Weight Lb 4.0700

Part Number FWV25F25F

• Material Cast Aluminum
• Inlet 2-1/2" female NST (NH) Outlet (2) 2-1/2" male NST (NH)
• Maximum Operating Pressure 400 PSI (water/AFFF only) at 70°F (21°C)
• Weight Lb 11.3250

Priced in the order as listed above
