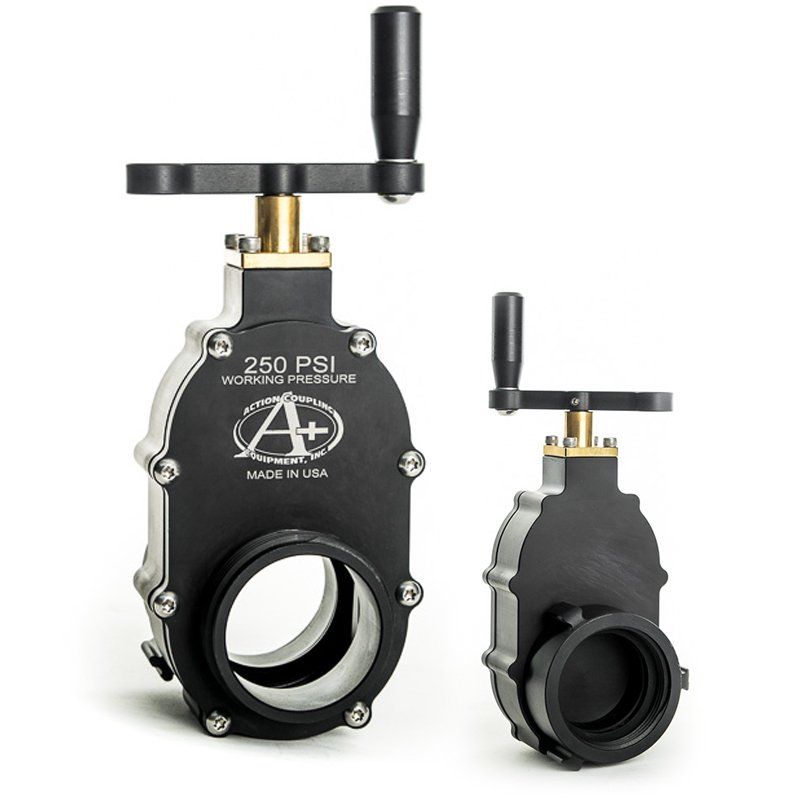

Action Hydrant Gate Valve

Action Hydrant Gate Valve

Action Hydrant Gate Valve

• Action Coupling's new light weight, heavy-duty 2-1/2" NH Female X NH Male gate valve is made from 6061-T6 extruded aluminum.
• This valve is machined from solid billet aluminum (not cast).
• This valve offers excellent shutoff control directly off the hydrant or other water source.
• The unique design gates the water so that the valve body is not pressurized while the valve is closed.
• The non-rising spindle with full 2-1/2" waterway flow allows for complete range from open to closed in 11 revolutions.
• The surface finish is a Black Hard Anodized Type III Class 2 process that will provide years of protection.
• The extruded body and design allows for easy rebuild and maintenance of internal parts.
• Available in special threads.

Materials:

• Body, Handle and Gate: 6061-T6 Aluminum, Hard anodized Type III
• Spindle and Packing Gland: CDA 360 Brass
• Fasteners: 18-8 Stainless Steel
• Gasket & O-rings: Buna N
• Face Gasket: SBR

Technical Data:

• Length: 4-1/4"
• Width: 5"
• Height: 11"
• Weight: 4-1/2 lbs.
• Pressure Rating: 250 PSI
• Safety Factor: 3
