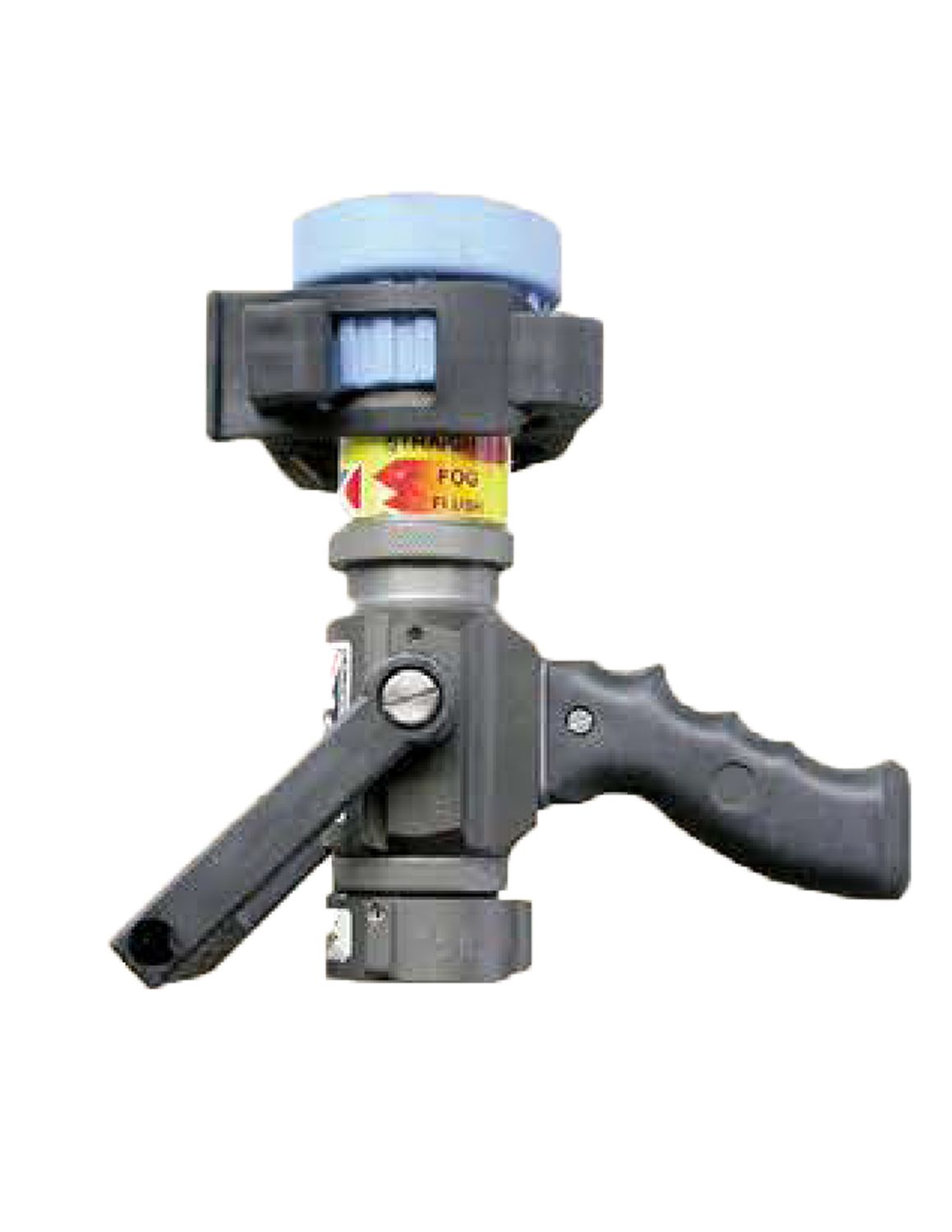

50052 Quick Fist Nozzle Clamp

50052 Quick Fist Nozzle Clamp

50052 Quick Fist Nozzle Clamp MADE IS THE USA QUICK FIST clamps and NFPA Standard 1901 Southwest Research Institute {www.swri.edu) has tested the QUICK FIST clamps and all products meet the 9-G force standard when the weight of the item being held by the clamp does not exceed fhe following loads:

Non Crew Area

• (1) Clamp 50 LBS
• (2) Clamps 100 LBS

Crew Area

• (1) Clamp 15LBS
• (2) Clamps 30 LBS
• Holds objects from 2 3/4" 10 3 1/4" (70 to 83mml in diameter.
• Each damp supports a safe working load of 50lbs (23 Kilos).
• Mounts eaSily with one 1/4" (6mm) bolt or screw .
• Mounting area: 4 1/2" x 1 1/4" (113 x 32mm)
• 12 per corton. Bolts Not Included
