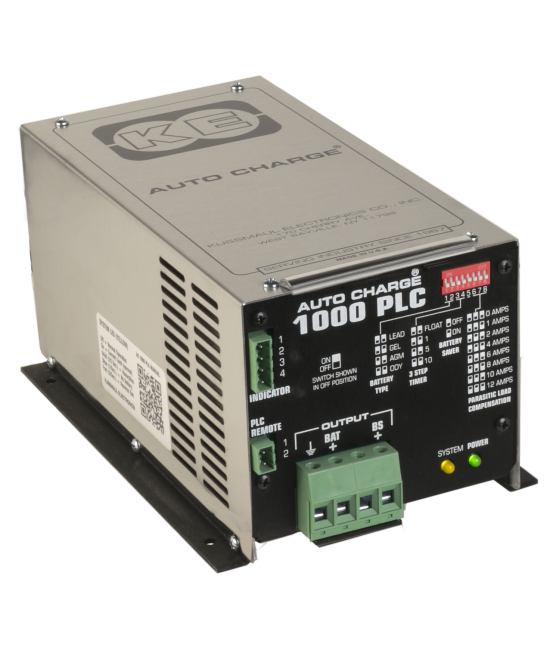

Kussmaul Pump Plus 1000 PLC

Kussmaul Pump Plus 1000 PLC 18A total:15A battery charger, 3A battery saver

• Parasitic Load Compensation allows for user input of total accessory load amps on the vehicle.
• This allows the charger to shift the absorption stage set point so the battery voltage drops to the float voltage when desired current is reached
• Pump output with AC or DC mode dip switch
• Microprocessor controlled, completely automatic operation regulates output to a single battery bank
• Electronic remote sensing of true battery voltage, eliminates the need for sense wires
• Built-in Battery Saver Output Accommodates Lead-Acid, Gelled Electrolyte
• AGM and Odyssey battery types
• Configurable for 3-Step or Float Charging 3 hour safety timer while in 3-Step mode
• Patent Pending
• 3 year warranty

This charger has three remote indicator options.

• Option 1, is the standard,
• 10 Element,
• Single Bar Graph Display.
• Order 091-215-12-PP for this option.

Option 2

• Water Tight AC  Enclosurer

Option 3

The bezel is available in 6 different colors:

• Red
• White
• Blue
• Yellow
• Gray
• Black

Order 091-215-12-PP-194B-WT-XX and specify color choice when ordering this option.

Air Pump Is Not Included, but can bought separate.
